| Brand Name : | Texas Instruments |
| Model Number : | TPS2330IPWR |
| Certification : | ROHS |
| Price : | negotiate |
| Payment Terms : | Western Union, T/T,Paypal |
| Supply Ability : | 20Kpcs |
| Delivery Time : | 2-3 working days |

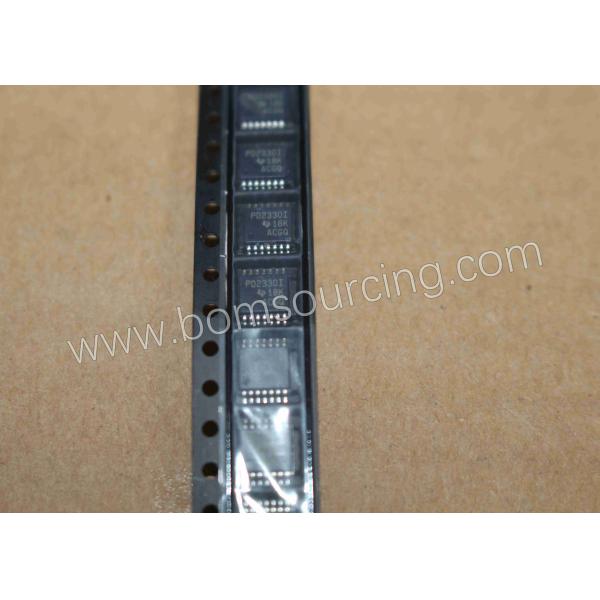

TPS2330IPWR Hot Swap Controller with circuit breaker and power-good reporting 1 Channel General Purpose
| FEATURES |
•Single-Channel High-Side MOSFET Driver |
•Input Voltage: 3 V to 13 V |
•Output dV/dt Control Limits Inrush Current |
•Circuit-Breaker With Programmable |
| Overcurrent Threshold and Transient Timer |
•Power-Good Reporting With Transient Filter |
•CMOS- and TTL-Compatible Enable Input |
•Low 5-μA Standby Supply Current (Max) |
•Available in 14-Pin SOIC and TSSOP Package |
•–40°C to 85°C Ambient Temperature Range |
•Electrostatic Discharge Protection |
APPLICATIONS |
•Hot-Swap/Plug/Dock Power Management |
•Hot-Plug PCI, Device Bay |
•Electronic Circuit Breaker |
| Type | Hot Swap Controller | |
|---|---|---|
| Number of Channels | 1 | |
| Internal Switch(s) | No | |
| Applications | General Purpose | |
| Features | Latched Fault, UVLO | |
| Programmable Features | Circuit Breaker, Fault Timeout, Slew Rate | |
| Voltage - Supply | 3V ~ 13V | |
| Current - Output (Max) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply | 500µA | |
| Mounting Type | Surface Mount |
